The ability to detect even very small HOLOS patterns in the camera image means large surfaces at a long distance from the camera can be made interactive. Already using a camera resolution of only 0.3 mega pixels (VGA), allows interactive surfaces of up to 93 inches in diagonal. The precision for an area this large is still better than a fraction of a mm, i.e. better than the display pixel size of most large area projectors/displays, see Table 1.









Surface

Accuracy &

Range


Active surface

width x height

Diagonal

Surface position

detection noise (3 sigma)

using a VGA camera

Size of HOLOS pattern in

camera image at this range

for a  40 mm sphere

1.9 m x 1.4 m

93 inch

0.65 mm

13 pixels

1.6 m x 1.2 m

79 inch

0.53 mm

16 pixels

1.3 m x 0.97 m

64 inch

0.33 mm

20 pixels

1.1 m x 0.82 m

54 inch

0.29 mm

24 pixels

0.92 m x 0.69 m

45 inch

0.21 mm

30 pixels

Table 1

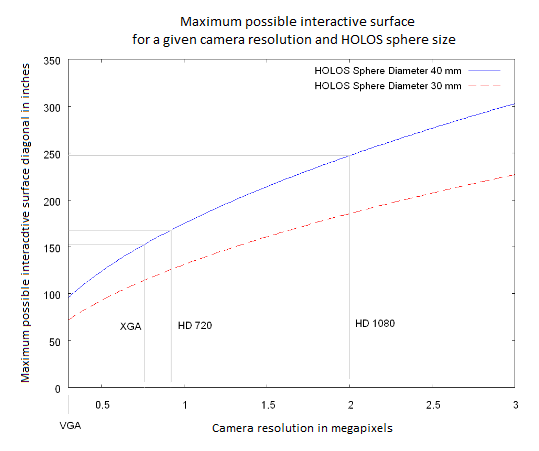

The size of the interactive area increases when using higher resolution cameras, like the now common XGA , HD720 or HD1080 and also allows the HOLOS sphere to shrink in size, as can be seen in the following diagram:

Figure 5
